Base Material Thickness (mm): 0.42, 0.48
Finish: COLORBOND® , ZINCALUME®
Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Standard Steel Ultra Steel Ultra Steel Ultra Steel Ultra Steel Ultra Steel Ultra Steel Metallic Steel Metallic Steel Metallic Steel Metallic Steel Metallic Steel Matt Steel Matt Steel Matt Steel Matt Steel Matt Steel MagnaFlow® MagnaFlow® MagnaFlow® MagnaFlow® MagnaFlow® Other Finishes
COLORBOND® Classic Cream™
COLORBOND® Evening Haze®
COLORBOND® Shale Grey™
COLORBOND® Pale Eucalypt®
COLORBOND® Manor Red®
COLORBOND® Woodland Grey®
COLORBOND® Cottage Green®
COLORBOND® Deep Ocean®
COLORBOND® Night Sky®
COLORBOND® Dune® Ultra
COLORBOND® Monument® Ultra
COLORBOND® Surfmist® Ultra
COLORBOND® Woodland Grey® Ultra
COLORBOND® Wallaby® Ultra
COLORBOND® Windspray® Ultra
COLORBOND® Basalt® Matt
COLORBOND® Monument® Matt
COLORBOND® Surfmist® Matt
COLORBOND® Dune® Matt
COLORBOND® Shale Grey™ Matt
Certain colour options and finishes may be subject to availability and lead times may vary from site to site. Please contact your local Stramit office to confirm.
A new 50,000 square metre warehouse, using Stramit quality products, is taking shape at Melbourne Airport to distribute parts for Bapcor, Australasia's leading provider of automotive aftermarket parts, accessories, equipment and services.Read more
Queensland will soon have its first mega cruise ship terminal, using Stramit quality products.
The new $177 million Brisbane International Cruise Terminal will have purpose-built facilities to accommodate some of the world’s largest cruise vessels, including mega ships such as the Royal Caribbean International's 293m-long Radiance of the Seas.
Stramit Speed Deck Ultra® Concealed Fixed Decking gives excellent durability in almost all locations. With all of its fastenings protected beneath the decking, Stramit Speed Deck Ultra® Concealed Fixed Decking can be expected to outlast through-fixed roofing. However, it is important to choose the correct coating for each application environment. Durability recommendations do vary based on the application of the product in roofing or walling installations.
All building products need to be checked for compatibility with adjacent materials. These checks need to be for both direct contact between materials, and where water runs from one material to another.
The following guidelines generally avoid material incompatibility:
Stramit's roofing and walling products should be handled with care at all times to preserve the product capabilities and quality of the finish.
Packs should always be kept dry and stored above ground level while on site. If the products become wet, they should be separated, wiped and placed in the open to promote drying.
The unique Stramit Speed Deck Ultra® Concealed Fixed Decking full width clip compresses blanket during installation making fixing easy. Blanket up to 100mm in thickness can be readily used. High thermal efficiency can be achieved by using Styrofoam blocks laid between the blanket and the fixing clips. Contact us for further information.
Stramit Speed Deck Ultra® Concealed Fixed Decking is supplied cut to length. When designing or transporting long products ensure that the length is within the limit of the local Transport Authority regulations.
The manufacturing tolerance on the length of product supplied is +0, -15mm
Stramit products conform to the following Australian standards that are called up in the NCC.
Roofing / Walling products
Stramit's roofing and walling products are protected in Australia by registered designs.
All Stramit roofing and wall cladding products conform with, or are equivalent to, AS1562.1.
Stramit has in-house, purpose built testing equipment used to design, develop and improve products for the Australian market. Many of our products are tested or witnessed by independent organisations. These include:
The ongoing research and development activity ensure we remain at the forefront of innovation, design and consumer information.
Please refer to the Stramit Roof and Wall Flashing Architectural Detailing Design Guide.
The roofing/walling shall be 0.42 (or 0.48) mm BMT Stramit Speed Deck Ultra® Concealed Fixed Decking in continuous lengths with trapezoidal ribs 43mm high, spaced at 233mm centres. Sheeting material shall be protected steel sheet to Australian Standard AS1397, with a minimum yield stress of 550MPa (Grade G550) and an AM100/AZ150 coating with an oven-baked paint film of selected colour, or a plain AM125/AZ150 coating.
The sheeting shall be fixed to the purlins/girts in accordance with the manufacturer’s recommendations using patented full length fixing clips supplied. Clips shall be fastened to purlins/girts with screws supplied in accordance with Australian Standard AS3566, Class 3, and attached at every rib. Sheets shall be laid in such a manner that the approved side lap faces away from the prevailing weather. A minimum of 50mm shall be provided for projection into gutters.
Flashings shall be provided in compatible materials as specified; minimum cover of flashing shall be 150mm. All sheeting shall be fixed in a workman-like manner, leaving the job clean and weathertight. Repair minor blemishes with touch-up paint supplied by the roof manufacturer. All debris (nuts, screws, cuttings, filings etc.) shall be cleaned off daily.
Where the Stramit FarLap® roof lap joint system is to be incorporated add the following to the specification above: All roof lap joints shall be constructed using the Stramit FarLap® roof lap joint system detailed and fixed strictly in accordance with the manufacturers written installation instructions.
Class 4 fasteners should be used <1km from the coast.
A NATSPEC work section is available for this product. Download
Refer to Stramit® Cyclonic Areas Roof and Wall Cladding brochure for information on use in cyclonic regions.
Concealed fixed decking such as Stramit Speed Deck Ultra® Concealed Fixed Decking is the preferred roofing material in alpine areas. This, and many other design suggestions, can be found in Australian Standards HB 106 – ‘Guidelines for Design of Structures in Snow Areas’.
Particular attention is drawn to maintaining an adequate roof slope for snow shedding, and screw fixing of deck pans beneath the ridge capping. Downward load capacities for Stramit Speed Deck Ultra® Concealed Fixed Decking have not been tabulated, but can be assumed to equal the outward capacities shown.
Stramit Speed Deck Ultra® Concealed Fixed Decking has purpose made fixing clips to attach the decking to the purlins. These clips require 3 fasteners positioned between the clip upstands. Please refer to the instruction details to ensure correct operation.
All fastening screws must conform to AS3566 – Class 3.

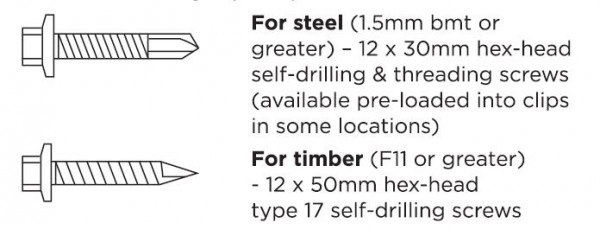

For connecting clips to purlins use:
The approved system consists of Stramit Speed Deck Ultra® concealed fixed decking 700mm effective cover sheets produced from hi-tensile steel with Class AZ coating to AS1397-2011 in plain or pre-painted finish.
The sheet has 3 ribs 233mm apart and must be secured using Stramit Speed Deck Ultra® clips, with each clip fixed to a steel support of minimum 1.5mm thickness using 3 Buildex® 12-14 x 30mm hex-head fasteners.
Fletcher Insulation Roof Rack® refers to both the 75mm and 100mm high spacers, which are fastened using 3 Buildex® 12-14 x 30mm hex-head fasteners to the minimum 1.5mm thick steel supports. The Stramit Speed Deck Ultra® clips are fastened to the Roof Rack® spacers using 3 Buildex® 12-14 x 30mm hex-head fasteners.

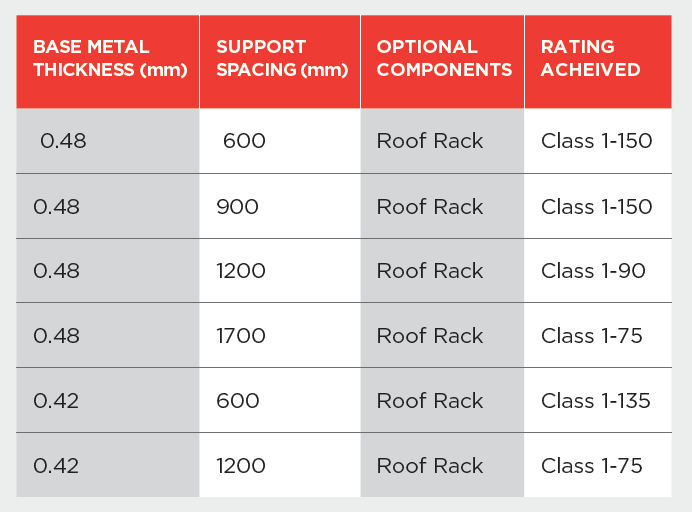

Achieved ratings for each assembly:
Please refer to the Stramit Roofing Systems with FM Approved Certification brochure for more details.

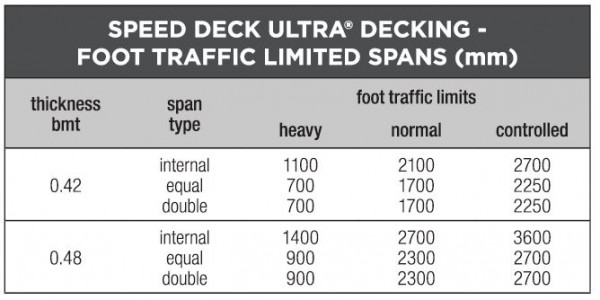

Foot traffic limits for Stramit Speed Deck Ultra® Concealed Fixed Decking are shown for 3 alternative foot traffic categories:
High Maintenance – for applications with repeated maintenance, particularly where personnel may be unfamiliar with correct procedures for walking on metal roofs.
Normal – based on traditional expectations, with moderate maintenance foot traffic using designated footpaths.
Controlled – spans that confirm to AS1562.1 with 1.1kN load specified in AS/NZS1170.1 for R2 - Other Roofs. These require minimal careful foot traffic only on the designated footpath. Suggested for use only where occasional aesthetic imperfections from foot traffic are acceptable.
Tables are based on tests to AS1562.1 and AS4040 parts 0 and 1.
For more information on foot traffic performance of Stramit's roofing profiles refer to Stramit's Foot Traffic Guide.

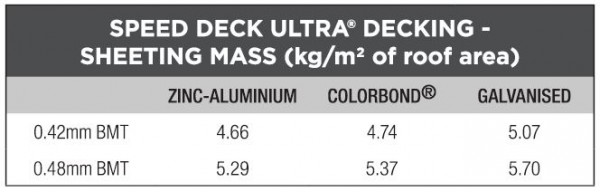

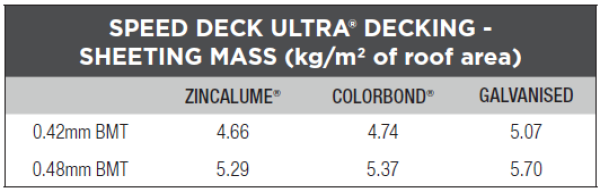

Speed Deck Ultra® Concealed Fixed Decking is manufactured from hi-tensile G550 colour coated steel, aluminium-zinc-magnesium alloy or zinc-aluminium alloy coated steel. In some locations galvanised and severe environment colour coated steel may be available by arrangement.
Colour coated steels are in accordance with AS/NZS2728 – Category 3 and, for the substrate, with AS1397. Aluminium-zinc-magnesium alloy coated AM100/AM125, zinc-aluminium alloy coated AZ150 and galvanised Z450 conform to AS1397.
Stramit has a comprehensive range of colours as standard. Ask your nearest Stramit location for colour availability.
The minimum roof slope for Stramit Speed Deck Ultra® Concealed Fixed Decking is 1 degree for many applications.

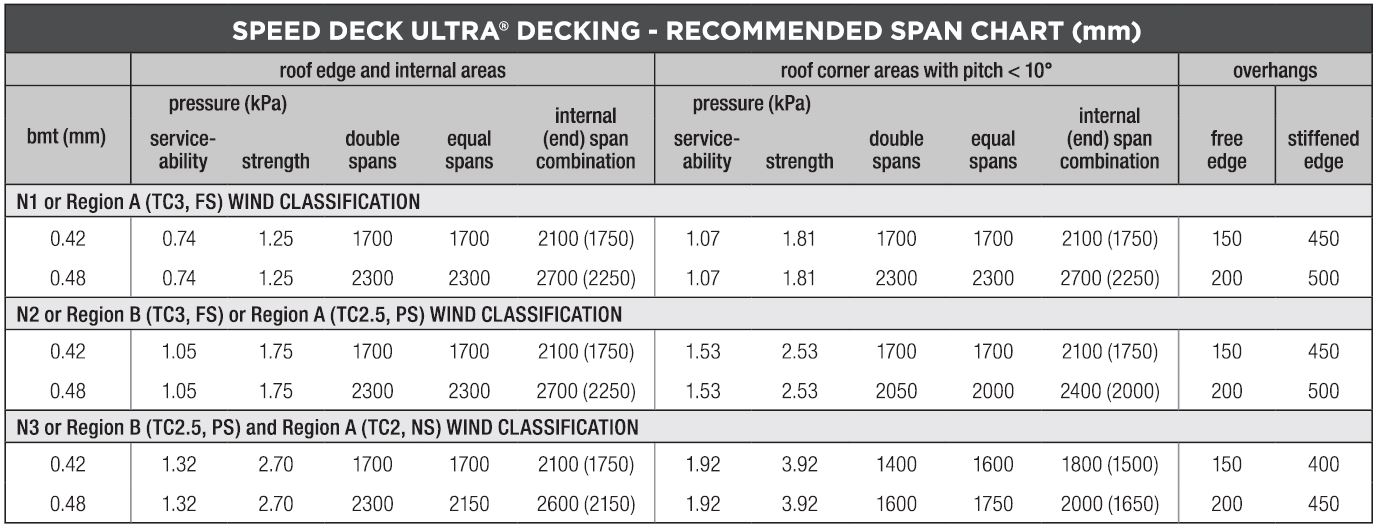

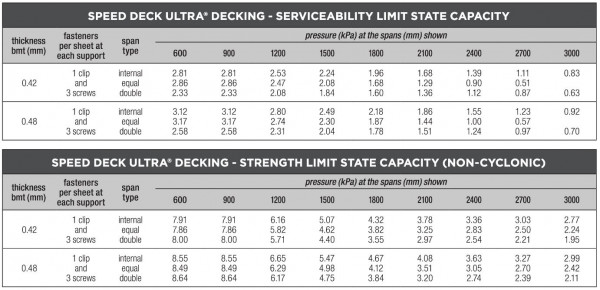

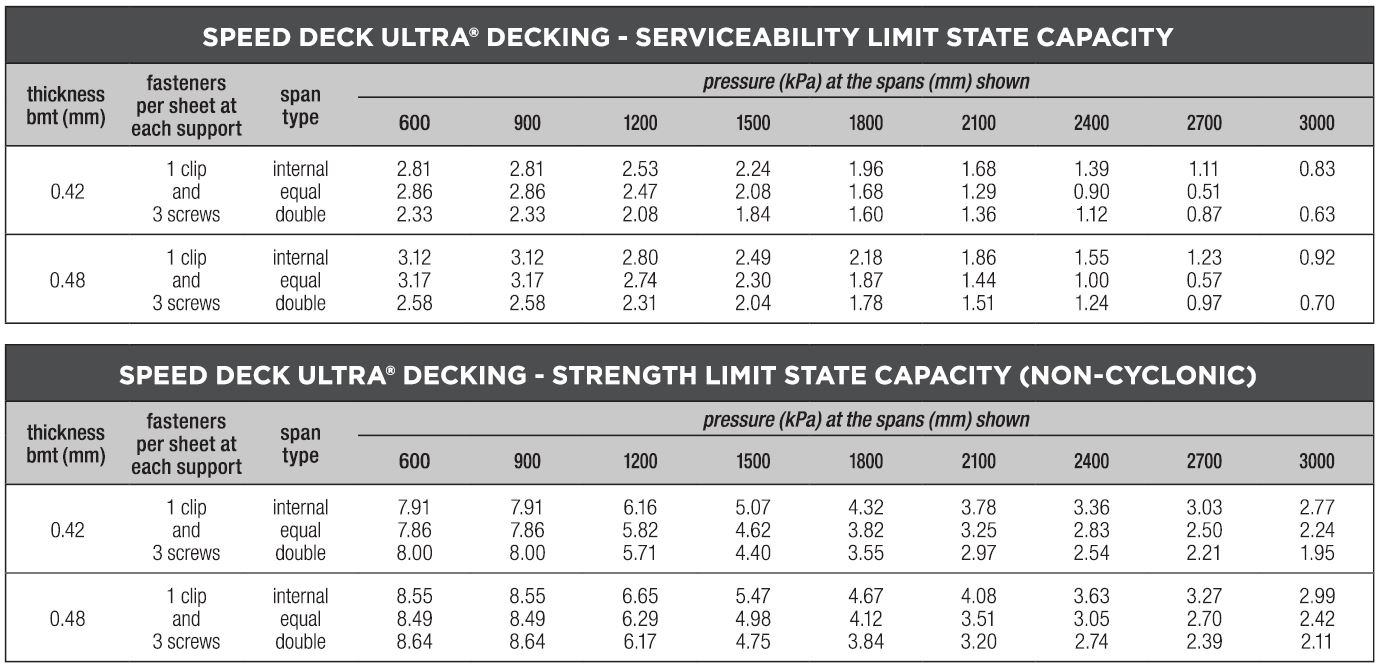

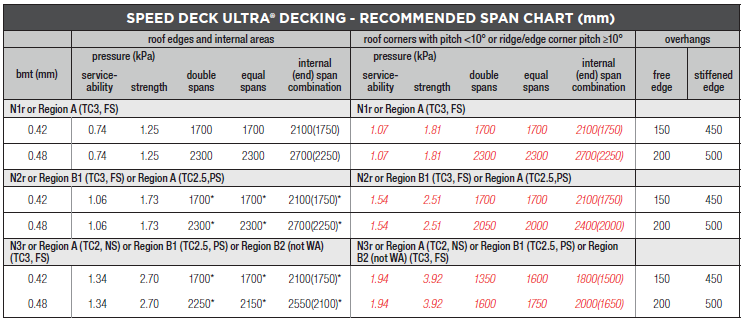

The spans shown below take account of 'normal' foot traffic and wind resistance including local pressure zone effects. Pressures are based on AS4055 or AS/NZS1170.2.
Where the two standards differ, the worst case has been taken for each classification. Data should only be used for buildings 7m or less in height, 1000m2 or less in area and unaffected by land topography.
Internal spans must have both end spans 20% shorter. TC - Terrain category. FS, PS, NS - Full, partial and no shielding. Internal pressure coefficient +0.2/-0.3. Values are only valid for use with steel members 1.5mm or thicker. Where thinner supports are used, fastener capacity must be checked. Refer to Stramit® Top Hat & Battens Product Technical Manual for more information.
For more specific applications Speed Deck Ultra® decking must be designed to the pressure and foot traffic limitations indicated.
Spans may exceed those shown in this table, provided the wind pressure and foot traffic limits are not exceeded.

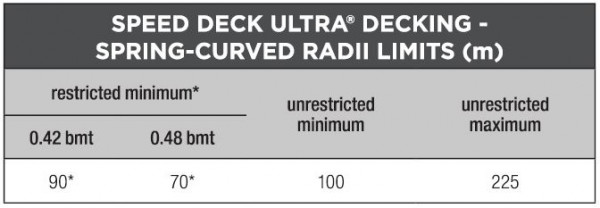

Stramit Speed Deck Ultra® Concealed Fixed Decking can be spring curved, concave and convex, including curved ridges, provided it is within the recommended limits below.
*At these radii a maximum support spacing of 1200mm applies, and limit state pressure capacities are reduced by 14% for serviceability and 7% for strength.
The Stramit Spring Curving Guide has more detailed information.
All metal roof sheeting is subject to thermal expansion and this needs to be accommodated where there is a temperature difference between the sheeting and the structure.
The colour of the sheeting will affect the amount of thermal expansion, and whether the sheet is flat or cured will affect its ability to resist without problems. Speed Deck Ultra® Concealed Fixed Decking has excellent resistance to the problems associated with thermal expansion, however sheet lengths should be limited as follows.

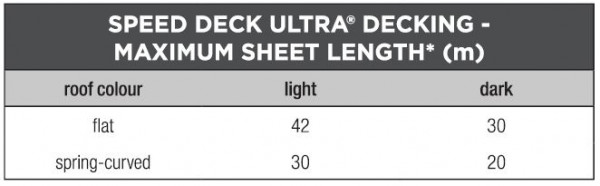

*Transport restrictions can apply – check with your local Stramit office.
Longer roof run lengths on a single plane support structure can be readily constructed using the Stramit FarLap® roof lap joint system.
Stramit Speed Deck Ultra® Concealed Fixed Decking has excellent water-carrying capacity. This and the decking stiffness enable roof slopes to be as low as 1° for many applications.
Roof run lengths are the combined lengths of all roof elements contributing to a single pan drainage path. This can include the roof length upstream of a roof penetration that concentrates flow into other pans.

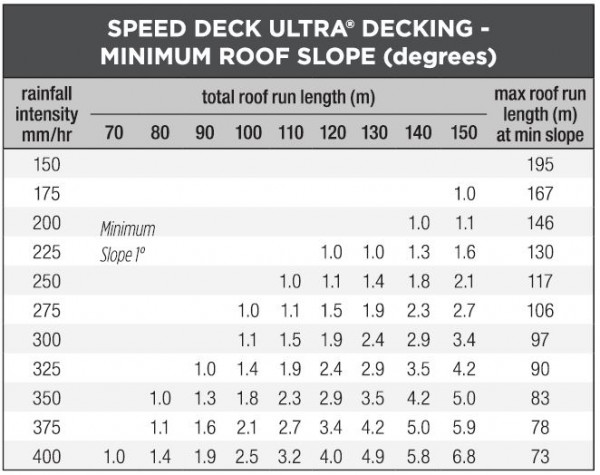

The table below gives slopes for 100 year return period rainfall intensity.
Based on AS1562.1
For more information on water carrying performance of Stramit Speed Deck Ultra® Concealed Fixed Decking and other Stramit roofing profiles refer to Stramit's Roof Slope Guide. Maximum water protection is also ensured by the absence of fastener penetrations when using Stramit Speed Deck Ultra® Concealed Fixed Decking.
Tables are based on testing to AS1562.1 and AS4040 parts 0 and 2. Internal spans must have both end pans 20% shorter.
Values only valid for use with steel support members 1.5mm or thicker. Where thinner supports are used, fastener capacity must be checked.
Refer to Stramit® Cyclonic Areas Roof and Wall Cladding Brochure for information on use in Cyclonic Regions.
Stramit's cladding can be easily cut, where required, using a power saw with a cold cut saw blade or a power nibbler and, for localised cutting, tin snips. Avoid the use of abrasive discs as these can cause burred edges and coating damage. Please dispose of any off-cuts carefully and thoughtfully.
The Stramit FarLap® roof lap joint is a patented revolutionary system that changes the way long run roof decking is designed and installed. It provides a multiple sheet option for long length concealed fixed roofing projects that eliminates traditional step joints or the need for long on-site rolled sheets, without compromising the integrity of the roofing structure.
Designed specifically for Stramit Speed Deck Ultra® Concealed Fixed Decking, the Stramit FarLap® roof lap joint system allows the installation of lapped sheets on standard purlin framing, without the need for conventional stepped jointing. The system provides a combination of a strong joint and a weather-resisting seal between lapped sheets.
The system is simply installed by clipping onto the ribs of the bottom sheet. The top, overlapping sheet is then pushed on to the Stramit FarLap® units, providing a structural connection. The joint connectors and sealing foam are manufactured from high technology materials that provide strength and weather-resistance and preserve the existing roofing warranty.
Stramit FarLap® roof lap joints can only be used with Stramit Speed Deck Ultra® Concealed Fixed Decking and with the following provisions:
Stramit FarLap® lap joints are readily installed on Stramit Speed Deck Ultra® decking. No additional fasteners are required. Stramit Speed Deck Ultra® Concealed Fixed Decking sheets are installed in the normal manner, except that:
When installing the Stramit FarLap® units:
Stramit Speed Deck Ultra® Concealed Fixed Decking is readily installed with or without fibreglass insulation blanket. If practical lay sheets in the opposite direction to prevailing weather.
Installation of Stramit Speed Deck Ultra® Concealed Fixed Decking is a straightforward procedure using the following fixing sequence.
Installation details for the FarLap® roof lap joint system and SkyLap® joint system for translucent sheeting are provided in separate supplements included in each box of units.
For use in conjunction with Stramit FarLap® joint system, Stramit Skylap® joint is only suitable for the fibreglass over fibreglass joint and the edge joint of the fibreglass over Stramit Speed Deck Ultra® decking joint.
Fibreglass sheet overlaps should be a minimum of 350mm as per the normal Stramit FarLap® recommendations. Stramit's Skylap® documentation outlines installation instructions.
Free underlap sheet edges may be encountered when using translucent sheeting, may need additional support. Use a 40mm x 40mm x 1.0mm trim angle beneath the underlap and screwed to the purlins if spans exceed 1500mm for 0.42BMT, and 2000 for 0.48BMT.
Below are some handy hints and tips to achieve maximum life from your COLORBOND® and ZINCALUME® finished products.
